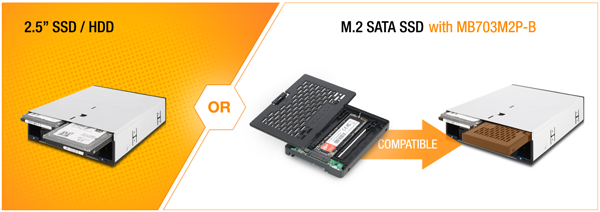

| • | Accommodates 1x 3.5" SATA HDD and 2x SATA HDD/SSD (up to 9.5mm drive height) |
| • | Installs into any standard external 5.25" device bay |
| • | Retractable dust cover for 3.5" slot to reduce the dust buildups in the system |
| • | Supports SATA 6Gbp/s transfer speed |
| • | Tool-less, screw-less, and door-less drive installation |
| • | A single 15-pin SATA power connector powers all drives |
| • | Ideal storage upgrade kit for applications that require frequent drive swappings, such as computer testing lab, PC repair center, HDD duplication, video/audio editing, daily file backup, in-vehicle data capture/record |
| • | Supports SATA 7-pin data and 15-pin power cables with locking latch design |
| • | Cool blue drive activity LED for each drive bay (Solid blue for power and flashing blue for drive activity) |
| • | Industry leading 3-year warranty against all defects |
| • | Complimentary support from professionally trained technical support agents |
| Model Number： | MB095SP-B |
| Color： | Black & silver |
| Support Drive Size： | 2 x 2.5" HDD/SSD (up to 9.5mm height) & 1 x 3.5" HDD (up to 26.1mm height) |
| Compatible Drive Type： | SATA / SAS (3.5" drive bay only / SAS host required / Single channel) |
| Number of Drives： | 3 |
| Drive Bay： | 1 x 5.25" half height bay |
| Host Interface： | 3 x SATA 7 pin |
| Power Input： | 1 x 15pin SATA power connector |
| Transfer Rate： | 3.5" drive bay: SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps 2.5" drive bay: SATA 3.0 up to 6Gbps |
| Support HDD/SSD Capacity： | No limitation |

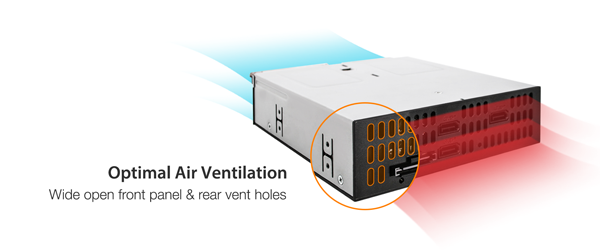

| Drive Cooling： | Metal heat dispersion with passive cooling |
| Structure / Material： | Metal with partial ABS plastic |
| Dimension (W x H x D) ： | 145.8 x 41.3 x 163.4mm |
| Product Net Weight： | 482.5g |
| Package Gross Weight： | 557.7g |
| Drive Activity LED Indication： | Drive power: solid blue; drive access: flashing blue |
| Package contents： | Device, user manual, screws |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products Series:
Quick Link:
Q: Does MB095SP-B support the new SATA 3.3 Power Disable feature (PWDIS)?
A: The MB095SP-B does not support the SATA 3.3 PWDIS feature. If you install the SATA HDD/SSD with PWDIS in MB095SP-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA HDD/SSD with the PWDIS feature.
Known SATA HDD/SSD with Power Disable Feature (PWDIS)
| WD | Ultrastar DC HC510
|
||||||||||||||||||||||||
Ultrastar DC HC520
|
|||||||||||||||||||||||||
Ultrastar He8
|
|||||||||||||||||||||||||
Ultrastar 7K6000
|
|||||||||||||||||||||||||
Ultrastar C15K600
|
|||||||||||||||||||||||||
| Samsung | PM883
|
||||||||||||||||||||||||
| Seagate | EXOS 7E8
|
||||||||||||||||||||||||
EXOS 15E900
|
Note: the SAS hard drive or SSD does not use the Pin 3 of SATA power connector for PWDIS feature and compatible with MB095SP-B .
While we recommend to avoid using the SATA HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
